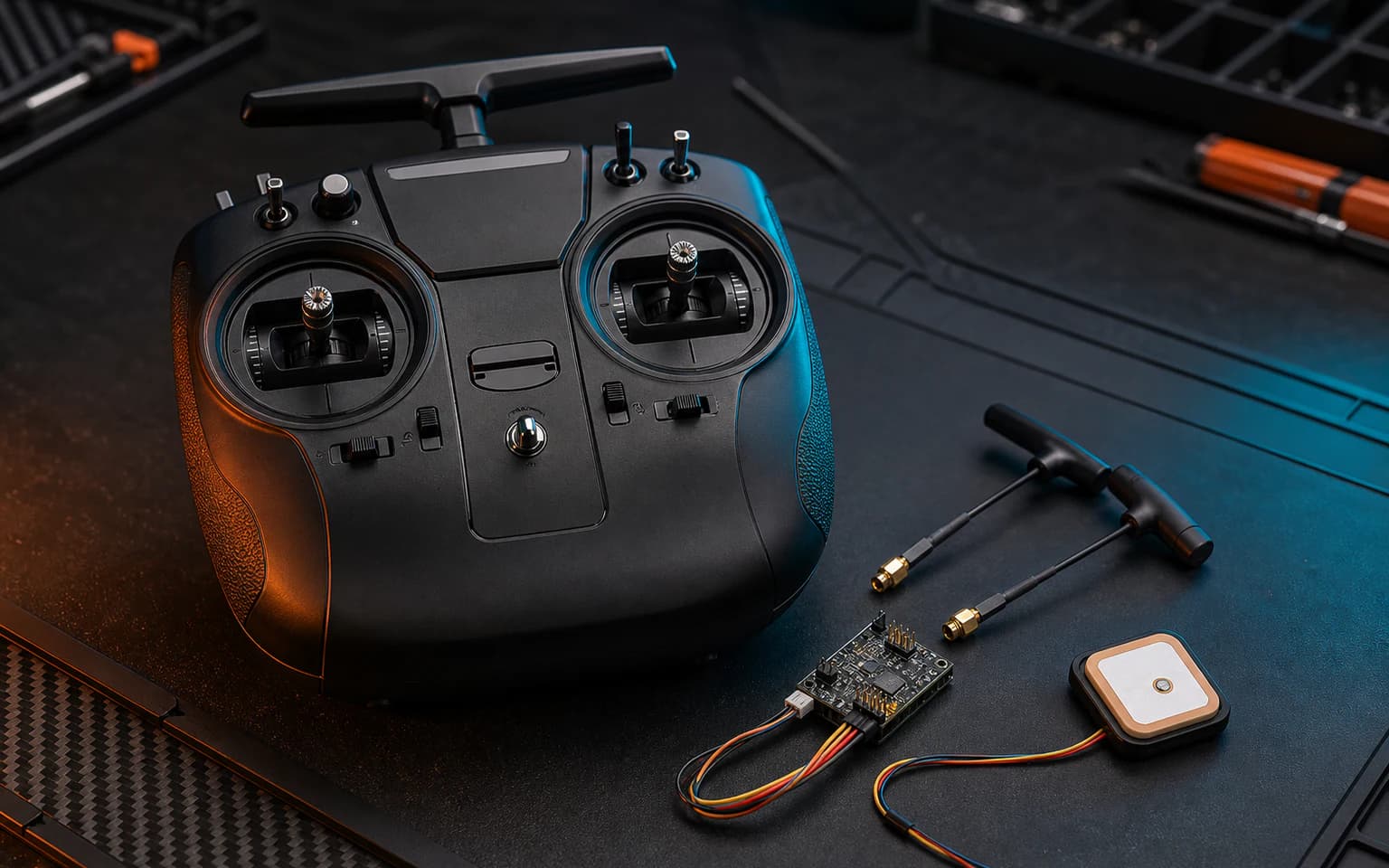

FPV radio, receiver, and GPS telemetry concepts in a dark tactical layout

Academy / Glossary

DECODE FPV WITHOUT GUESSWORK.

A practical terminology operating system for acronyms, hardware layers, symptoms, build profiles, and RAG-backed concept context. Built for beginners who need clarity and builders who need fast recall.

Start Roadmap Pilot Assessment

Search Mode

Ready

Loaded Terms

Syncing

Core Concepts

Live Context

On Demand

[SYS_CONSOLE_VER_4.5]

Search the FPV terminology console

// DECODE ACRONYMS, HARDWARE SYSTEMS, AND FLIGHT PROBLEMS INSTANTLY

Quick Search:

Start Here

The 15 most important FPV concepts every pilot should understand

SYNCING ONBOARDING NODES...

Learn By System

Structure your vocabulary by physical hardware layers

Radio Control System

The wireless telemetry link connecting pilot stick inputs to the aircraft.

Concept Index:

Power System

Voltage storage, battery cell chemistry, and power sag management.

Concept Index:

Flight Control System

The computational brain, gyro sensors, and stabilization loops.

Concept Index:

Video System

Live HD and analog video transmission links and latency envelopes.

Concept Index:

Navigation System

Global coordinate receivers and failsafe return-to-home algorithms.

Concept Index:

Troubleshooting Index

Active flight failure diagnosis and recovery concepts.

Concept Index:

Term Explorer

Complete high-fidelity pilot glossary alphabet index

No matching terminology index files found.

Drone Anatomy Explorer

Interactive textbook layout: click hotspots to isolate hardware terms

[SYS.ANATOMY_ACTIVE]

[LOC.QAV_S2_QUAD]

// DRONE_ANATOMY_TELEMETRY

Sensor Diagnostic Mode

Hover over glowing drone component nodes to capture dynamic telemetry feeds and isolate interconnected system terminology.

SYSTEM READY. WAITING FOR PILOT CAPTURE.

Active Target Isolation

FULL SYSTEMS VIEW

Build DNA Specifications

Browse drone configuration profiles and performance characteristics

Sub-250g Micro (Toothpick / Whoops)

[DETAILS]

Micro class multirotors optimized to operate below international regulatory registry weight limits.

Cinewhoop (3.0" - 3.5")

[DETAILS]

Safeguarded ducted frames designed for smooth, high-fidelity proximity capturing.

Acromania 5-Inch

[DETAILS]

The golden balance of durability, thrust-to-weight, and acrobatic versatility.

7-Inch / Deadcat Explorer

[DETAILS]

Wide wheelbase platforms geared for long-distance cruise efficiency and high altitude flight.

Troubleshooting Symptom Index

Problem-first directory: connect active flight problems to technical terms

Flight Fault ReportPID / Mechanical Noise

"My motors are extremely hot after short flights"

Likely Cause:Heavy frame vibrations, loose arm screws, or over-tuned D-term gains in the PID control loops.

Corrective Action:Check frame tightness, tighten motor screws, lower your D-term multiplier, or turn on Betaflight RPM filtering.

[ISOLATE FAULT TERMINOLOGY]

Flight Fault ReportVTX / RF Penetration

"My video feed keeps getting lines and static"

Likely Cause:Antenna polarization mismatch, loose coaxial U.FL connection, or flying behind thick concrete walls.

Corrective Action:Verify VTX antenna match (LHCP/RHCP), check U.FL lock, increase VTX power setting (mW), or switch channels.

[ISOLATE FAULT TERMINOLOGY]

Flight Fault ReportESC / Motor Desync

"My quad randomly rolls upside down and falls (Desync)"

Likely Cause:ESC losing sensorless tracking alignment with motor stators during sudden throttle spikes.

Corrective Action:Raise ESC startup power to 0.50, raise motor timing to 22-25 degrees, or verify motor windings for copper burns.

[ISOLATE FAULT TERMINOLOGY]

Flight Fault ReportLQ & RSSI Loss

"My transmitter outputs "Telemetry Critical" warning alerts"

Likely Cause:Low transmitter power, bad receiver antenna placement, or excessive physical blocking between sticks and drone.

Corrective Action:Upgrade to ExpressLRS 500Hz, check receiver antenna placement, or increase transmit packet power (mW).

[ISOLATE FAULT TERMINOLOGY]

Flight Fault ReportGPS / EMI Interference

"My GPS Rescue cannot arm / does not lock satellites"

Likely Cause:GPS module mounted too close to high-noise digital video transmitters or action camera hardware.

Corrective Action:Isolate the GPS module far back on the tail plate, shield wiring with copper tape, and wait for 8+ satellites.

[ISOLATE FAULT TERMINOLOGY]

Flight Fault ReportLiPo / Internal Resistance

"My battery sag drops voltage rapidly on punchouts"

Likely Cause:High internal cell resistance due to aging batteries, cold conditions, or excessive current draw.

Corrective Action:Pre-warm batteries in cold weather, retirement of high-resistance packs, or fly high-C rated packs.

[ISOLATE FAULT TERMINOLOGY]

FPV Acronym Database

Abbreviation matrix for fast decoding and lookups

ELRSExpressLRS

[DECODE]

ESCElectronic Speed Controller

[DECODE]

FCFlight Controller

[DECODE]

GPSGlobal Positioning System

[DECODE]

LQLink Quality

[DECODE]

OSDOn-Screen Display

[DECODE]

PIDProportional Integral Derivative

[DECODE]

RPMRevolutions Per Minute

[DECODE]

RSSIReceived Signal Strength Indicator

[DECODE]

UARTUniversal Asynchronous Receiver-Transmitter

[DECODE]

VTXVideo Transmitter

[DECODE]

LiPoLithium Polymer Battery

[DECODE]

Advanced Relationship Explorer

The multi-dataset RAG crawler maps implicit logical node links between modules, blueprints, and flight logs. Ready for advanced conceptual telemetry mapping.
